    Oil Fill Valve Assembly

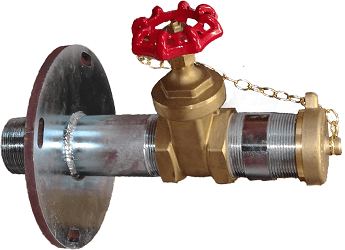

    Available with connections from 1” through to 4” Landon Kingsway’s Oil fill valve assembly are used for filling fuel storage tanks they have been designed to allow external connection from tanker. The design features a flanged connection which bolts directly into Landon Kingsways Oil fill cabinet. Landon Kingsway’s Oil fill valve assembly are supplied with cap and chain.

    Optional- Camllock Connection Optional extra – Strap and chain for preventing unwanted access.

    To fill the fuel storage tank first electrically ground the tanker to the equipment. Connect the fuel tanker delivery hose to the male parallel BSP threaded connection point. Slowly open the level gate valve. Dispense the required amount of fuel into the tank. Close the gate valve to isolate the storage tank fill line. Disconnect the fuel tanker delivery hose. Disconnect tanker earth lead. To prevent the accidental emptying of the fuel storage tank the valve must only be opened when a fuel tanker delivery hose is connected.

    .

    Oil Fill Valve Assembly Landon Kingsway Oil Fill Valve Assembly

    Specification

    Screwed Spec: BSP parallel
    Pressure PN20
    Temperature -20°C to 180°C
