    Electromek MKII Manual Quick Release Mechanism

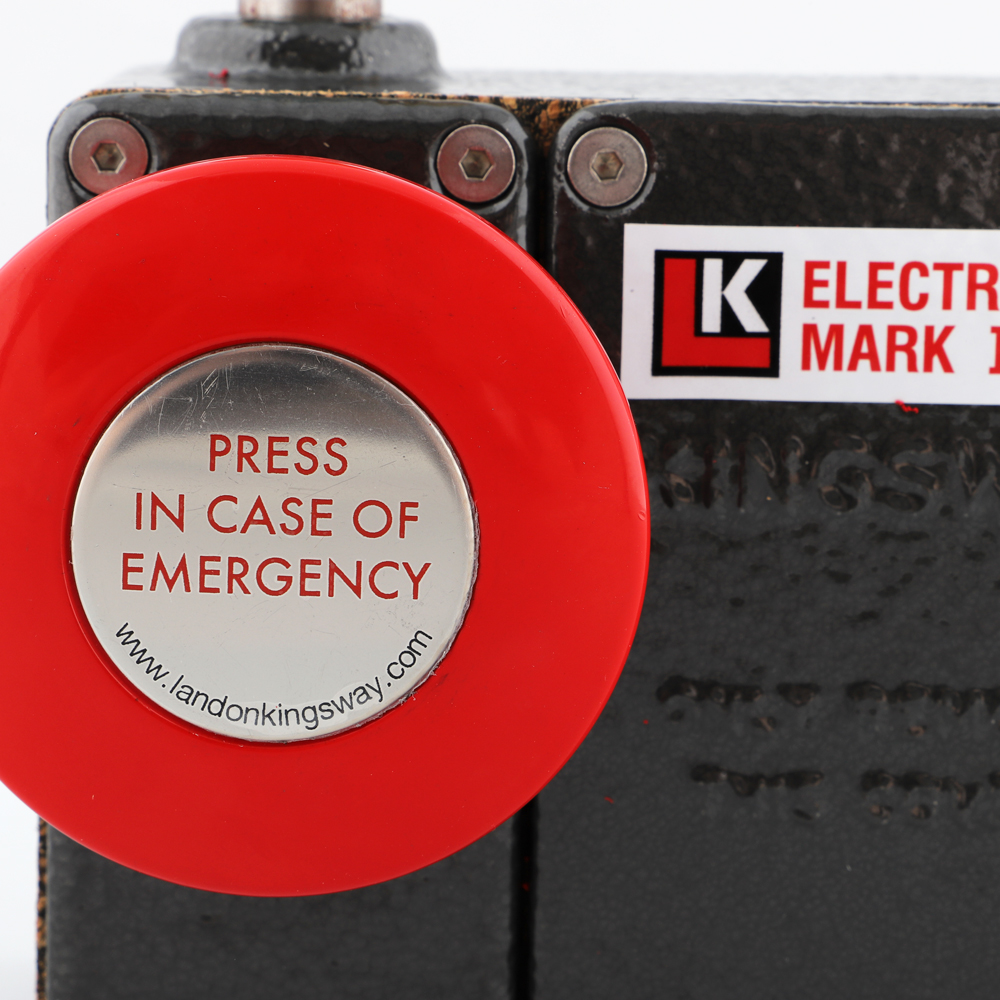

    The Electromek is a manual quick release mechanism that also contains a pair of change-over contacts that operate either when the button is pushed or when the cable goes slack for any other reason (such as a thermal link melting).

    The electrical contacts may be used to sound an alarm, de-activate equipment or send a signal to a fire control panel.

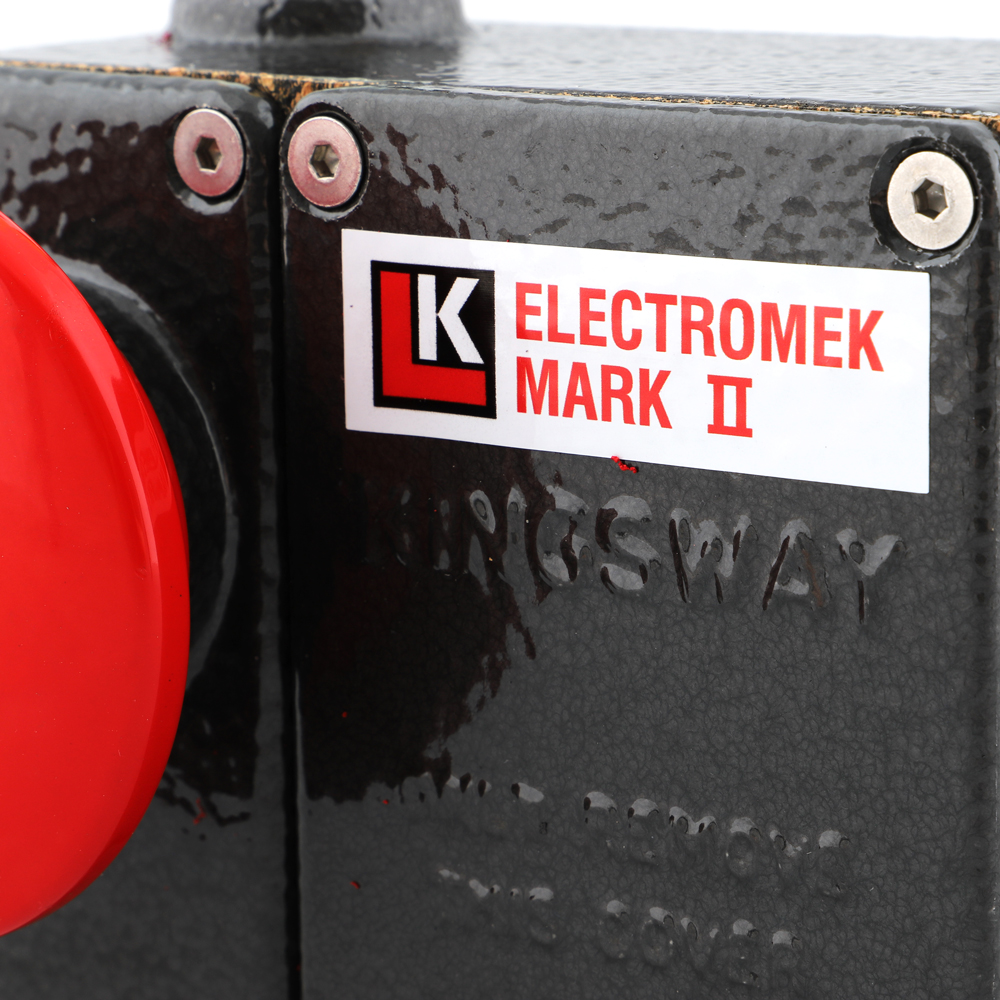

    Landon Kingsway Electromek Mark II

    Technical Specification

    Enclosure: Diecast Aluminium Alloy
    Dimensions: 131 x 172 x 102mm overall
    Fixing Centres: 4 holes, Ø4mm

    Protection Rating: IP52
    Switch Rating: 250V AC, 5A
    Wire Size: 2.5mm² max

    Conduit Connection: 2x 20mm E.T.
    Pressure to Release: 40N approx.
    Weight: 1.4kg
