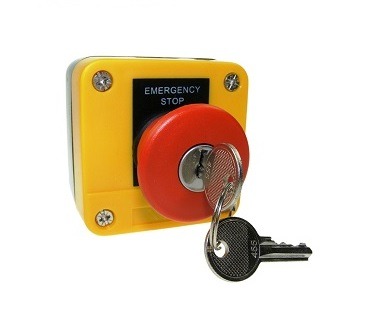

    Emergency Panic Button with Key Reset

    The emergency panic button with key reset has a variety of uses where it is required to have a latching push button that can only be rest by an authorised keyholder.

    The switch has one set of normally closed contacts which may be used to cut the power to an item of machinery or to break the sensor loop of a fire control panel.

    Emergency Panic Button with Key Reset Landon Kingsway Free Fall Fire Valve Mounting Bracket and Position Switch Horizontal

    Technical Specifications

    • Enclosure : ABS plastic with red button
    • Dimensions : 83 x 80 x 85mm
    • Fixing centre : 50 x 70mm … Ø4mm
    • Protection rating : IP65
    • Switch rating : 4A … 250V 50Hz
    • Wire size : 2 x 2.5mm²
    • Conduit connection : Ø20mm
    • Weight : 0.3kg
