    Fuel Fill Point Cabinets   Download

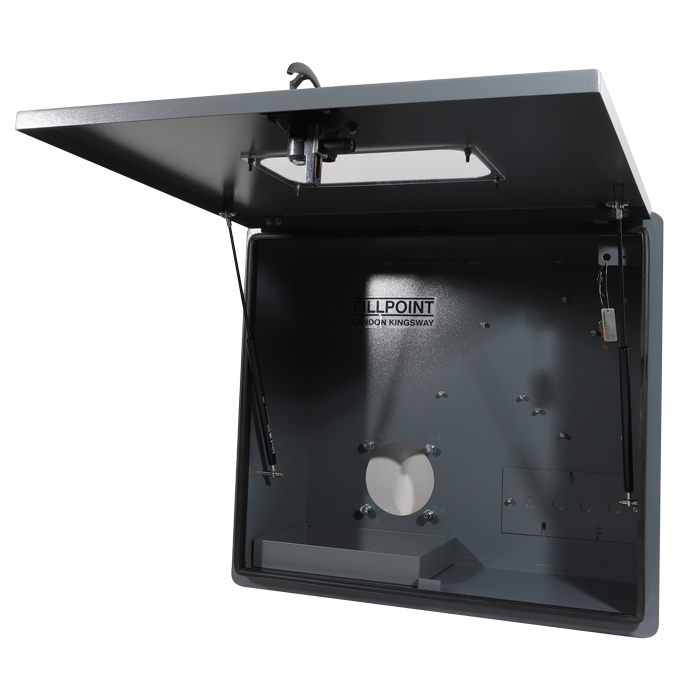

    Fuel Fill Point Cabinet

    Landon Kingsway fuel fill point cabinets have been designed for filling fuel storage tanks. They are housed within the fabric of the building or built into a boundary wall. A double locking handle feature limits access to authorised personnel only. Tank levels can be read without accessing the cabinet through a polycarbonate window.

    The Landon Kingsway Fuel Fillpoint Cabinet conforms with metric brickwork and is available as a standard unit in single, double and triple sizes. The Fuel Fillpoint Cabinet can be fitted with isolation valves up to 100mm in diameter, non return valves and dry break couplings available as an option.

    The entire cabinet is constructed from 16 SWG Zintec Steel finish then powder coated grey. A shatter proof polycarbonate viewing window is provided as standard for easy reading. Contents gauges are supplied as an extra. Studs are pre installed to accept 150mm gauges and the Landon Kingsway Filguard Alarm Panel. Holes are pre drilled to accept Fill Valve assemblies. Internal lighting with automatic switching is also available as an option. The door is completely weather sealed. A supporting gas strut eases opening and closing and maintains a fully open position when required

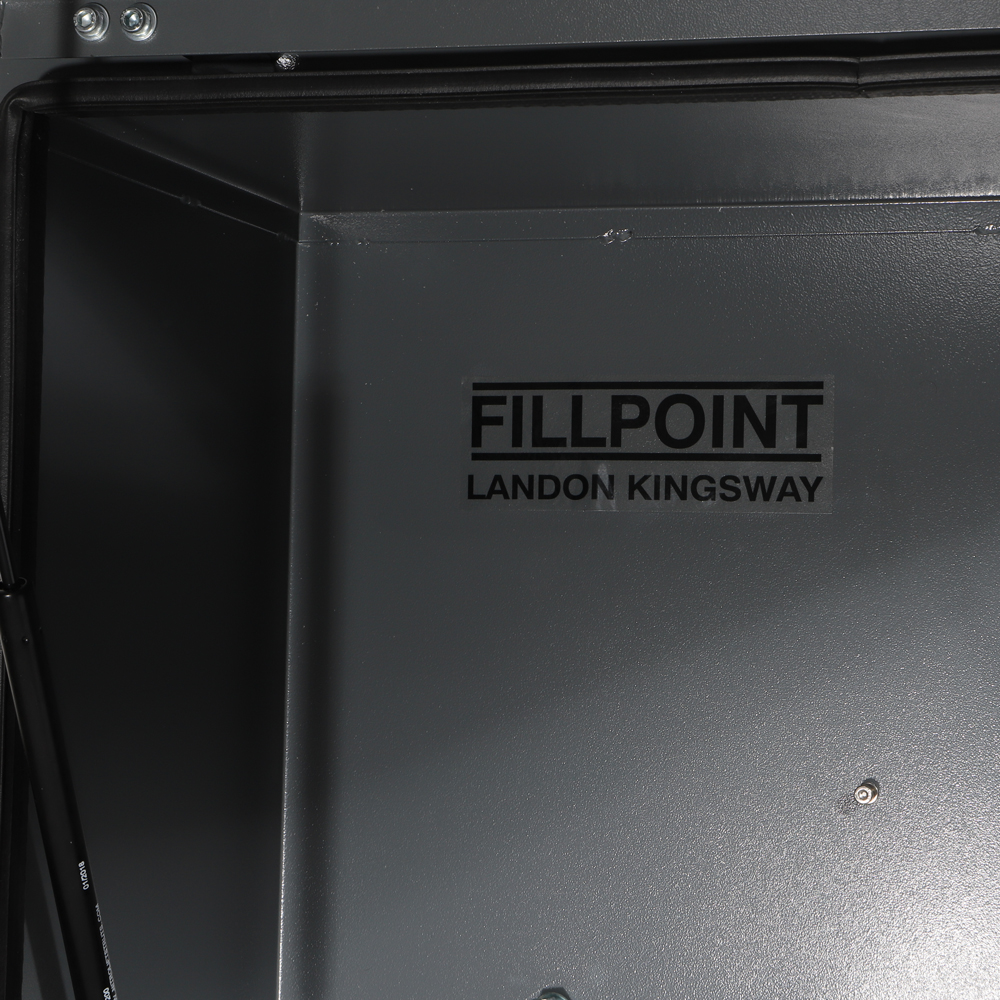

    Zintex Coated Steel
    Zintex Coated Steel

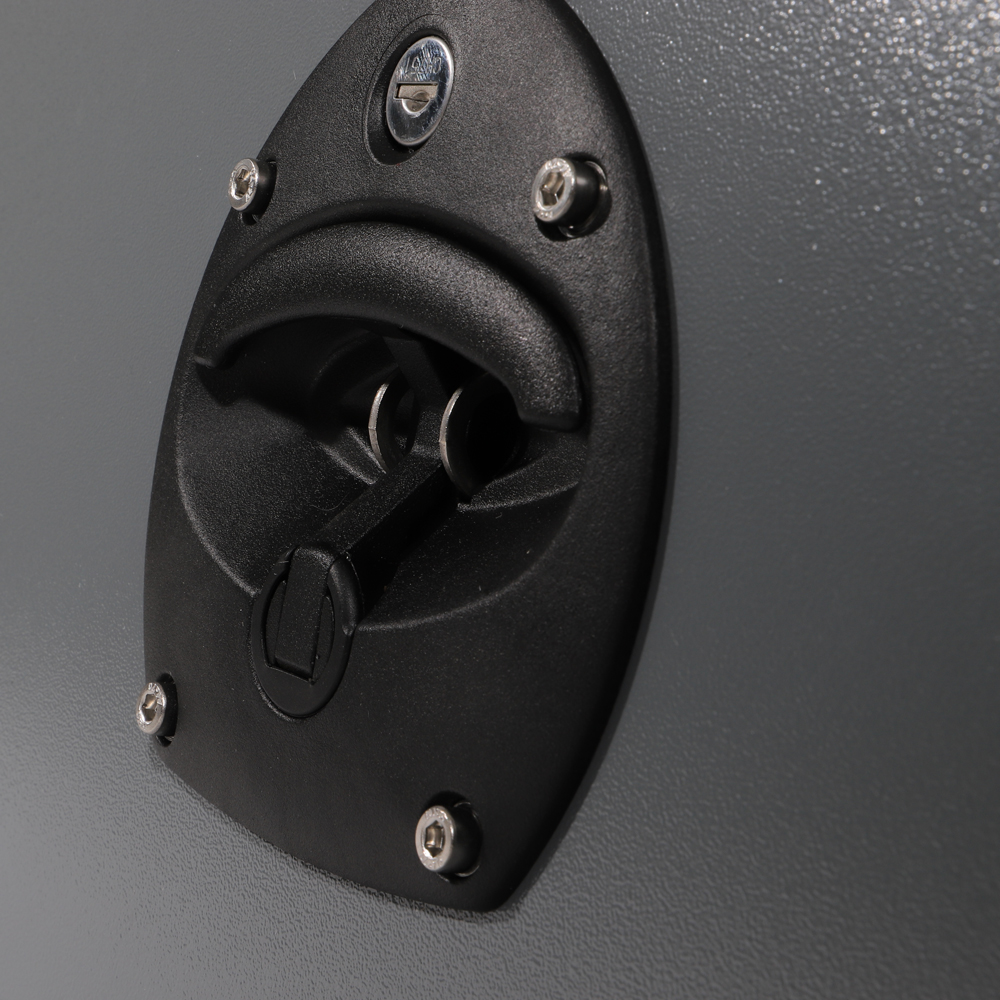

    Locking handle as standard
    Locking handle as standard

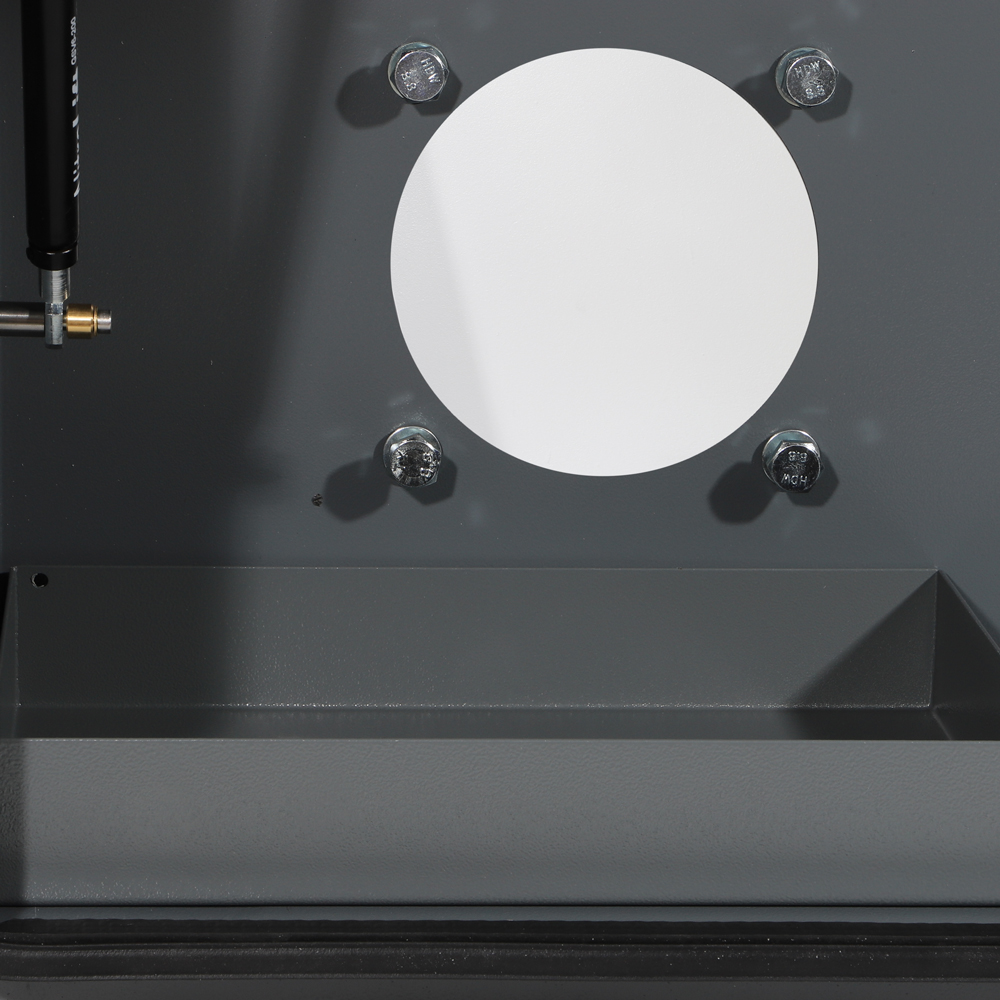

    Drip tray as standard
    Drip tray as standard
    Bespoke cabinets upon request
    Bespoke cabinets upon request
    Fuel Fill Point Cabinets Landon Kingsway Fuel Fill Point Cabinets
    Fuel Fill Point Cabinets Landon Kingsway Fuel Fill Point Cabinets

    Options

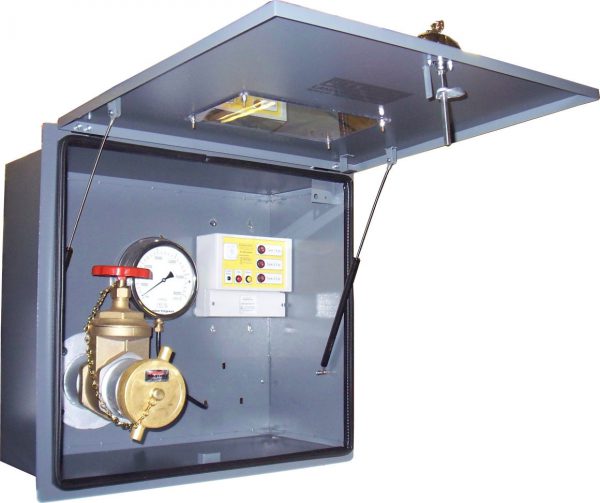

    Type A Single point oil fill cabinet
    Type B Twin point oil fill cabinet
    Type C Triple point oil fill cabinet

    With or without viewing window
    Internal lighting

    25mm fill valve assembly
    50mm fill valve assembly
    65mm fill valve assembly
    80mm fill valve assembly
    100mm fill valve assembly

    All oil fill valves are complete with support tubes, valves, fill cap and chain.
