    Manual Quick Release Mechanism

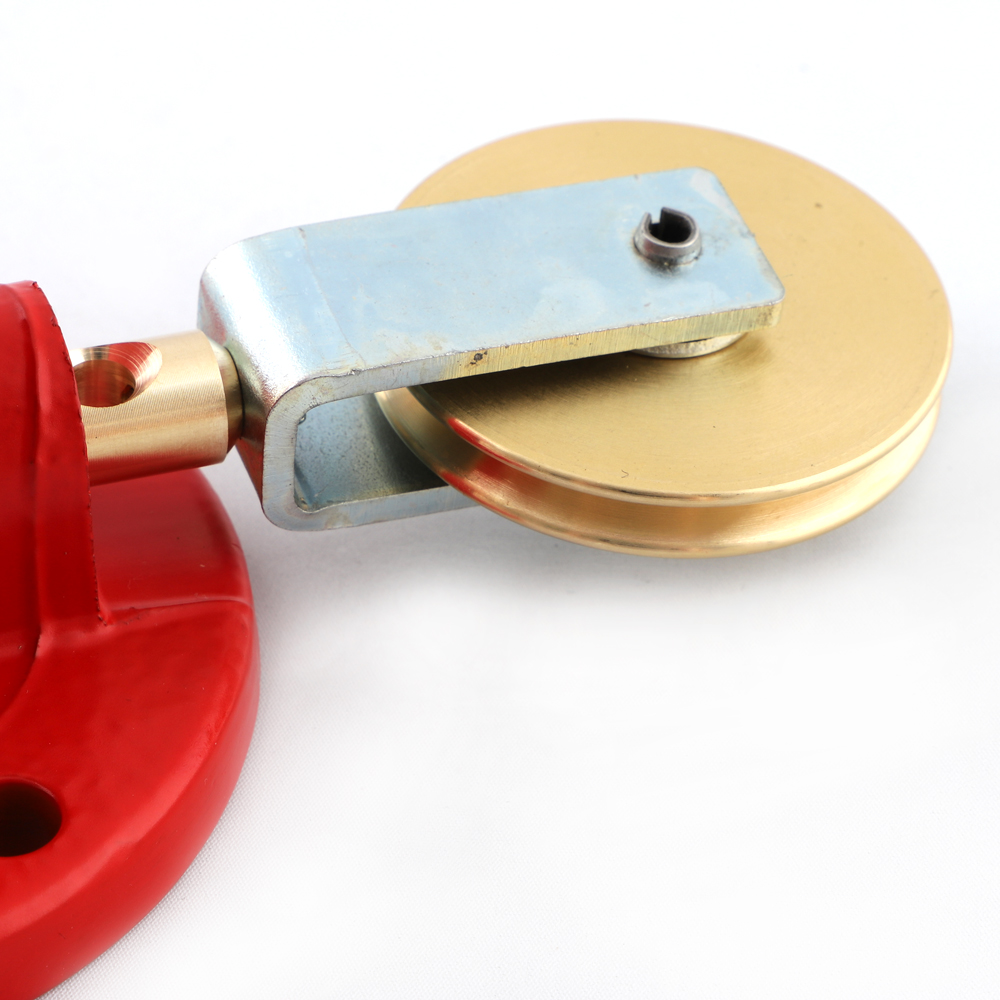

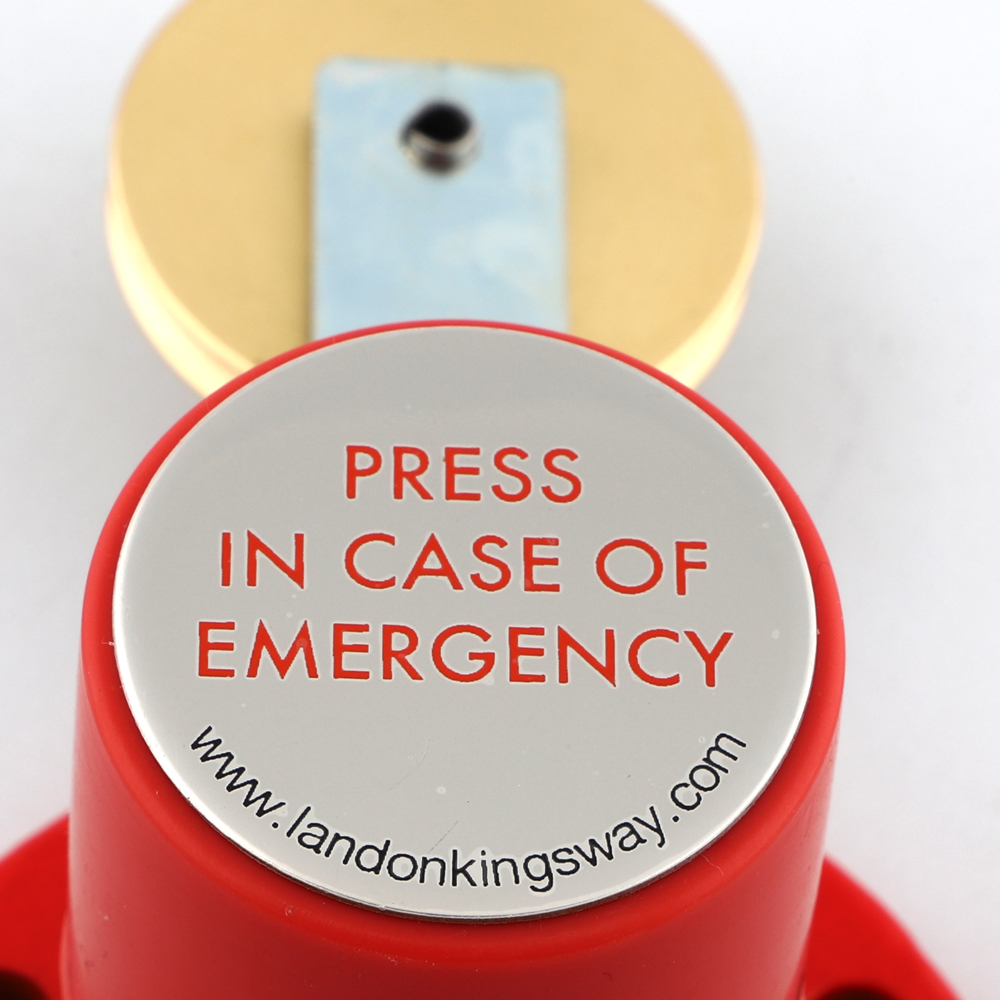

    The Manual Quick Release Mechanism is designed for use with our free-fall fire valves. The steel cable from the valve is looped around the pulley and is released if the button is pressed allowing the valve arm to fall.

    Manual Quick Release Mechanism Landon Kingsway CAPILLARY FIRE VALVE CFV

    Technical Specification

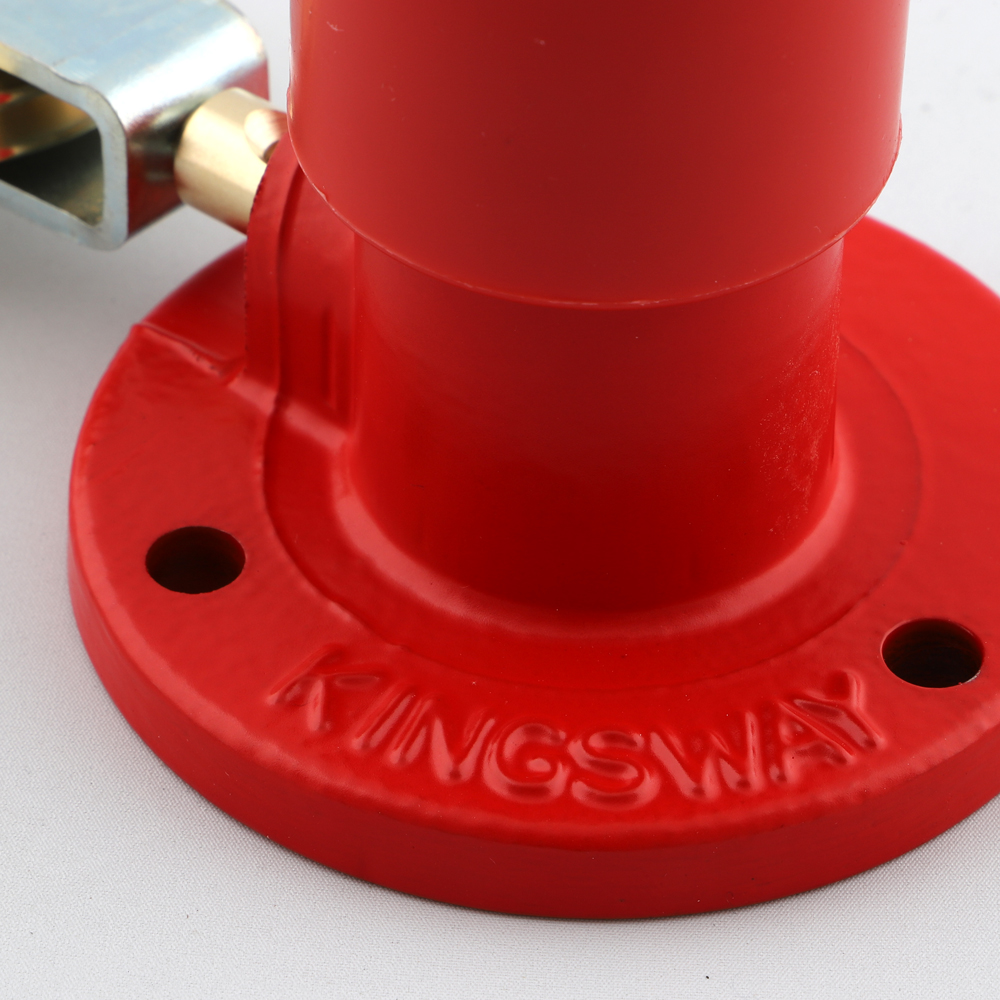

    Material: Red painted cast aluminium body, plastic button, brass pulley.
    Weight: 0.3kg

    Dimensions: 135 x 76 x 82.5mm
    Fixing Centres: 60mm PCD, Ø7mm
    Force to Release: 40N approx.
