    Automatic Overfill Prevention Device for static storage fuel tanks – OPD-2

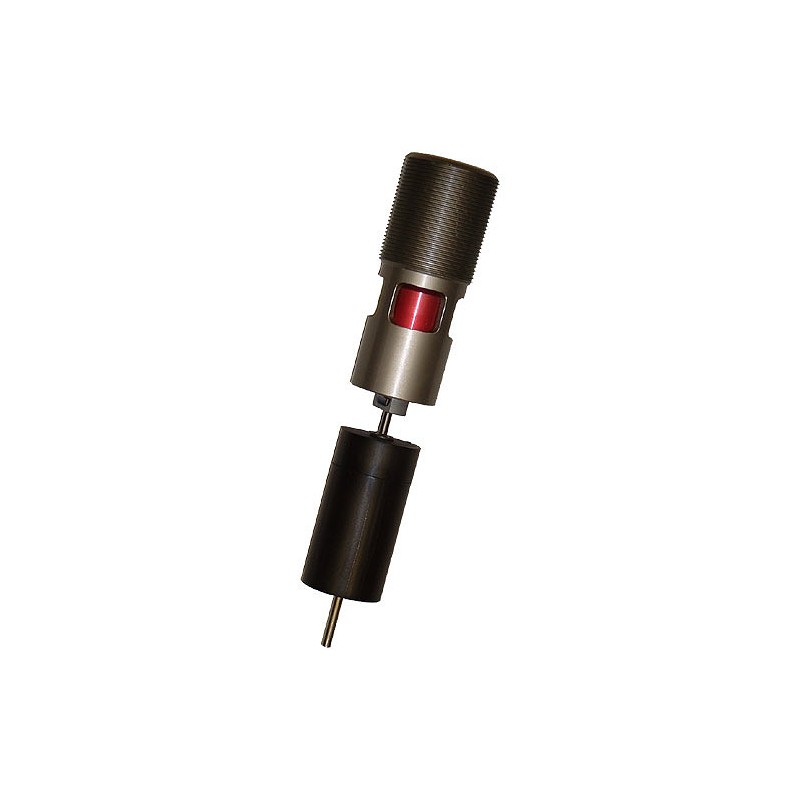

    The Automatic Overfill Prevention Device for static storage fuel tanks – OPD-2 protects both the environment and the individual from the effects of fuel spillage. Designed to BS EN 13616 this overfill protection device is suitable for use on both fuel and diesel storage tanks, which may have a pumping or gravity feed system (not suitable for use with petroleum). Once the tank has reached its maximum fuel capacity, this valve will close to prevent any additional fuel from being delivered, thus preventing overfilling. A version of this can be supplied specifically for use on plastic tanks. 50/M 20-151/M

    Automatic Overfill Prevention Device for static storage fuel tanks - OPD-2 Landon Kingsway Automatic Overfill Prevention Device for static storage fuel tanks - OPD-2
    Automatic Overfill Prevention Device for static storage fuel tanks – OPD-2

    Features

    • Automatic operation
    • BSEN 13616:2004
    • Pressure: 0.15 to 6 Bar
    • Flow rate: 35 to 600ltrs Per Min
    • Inlet connection 2” Male BSPP
    • Less than 1min re-opening time
    • Working Temp: -20°C to +50°C
