    Severlek Emergency Buttons

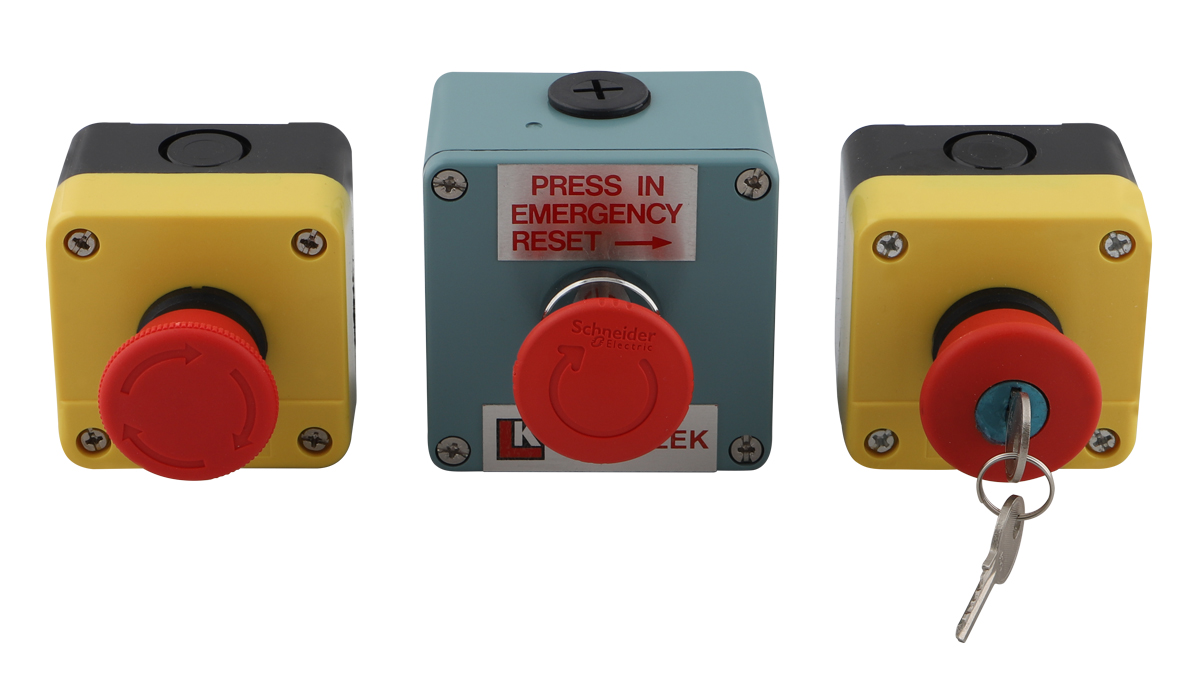

    Severlek Emergency Buttons have a variety of uses where it is required to have a latching push button switch to sound an alarm or de-activate equipment.

    The switch has both a ‘normally open’ and a ‘normally closed’ contact pair which both change state on the switch being pressed.

    Normally open contact
    Normally open contact
    Normally closed contact
    Normally closed contact
    Sounds alarm
    Sounds alarm
    De-activate equipment
    De-activate equipment
    Severlek Emergency Buttons

    Technical Specifications

    Enclosure grey, epoxy coated diecast aluminium with red plastic button.

    Dimensions 80 x  80 x 88mm
    Fixing Dimensions 50 x 65mm  Ø5.6mm
    Protection Rating IP65

    Switch Rating 3 A at 240 V
    Wire Size 2x 1.5 mm²
    Conduit Connection 2 x holes 1 with blanking plug both ISO 429248 cable gland 20 mm

    Weight 0.4 kg

    Available Models

    Manual Quick Release Mechanism
    Electromek MK II Manual Release 2x C/O Contacts

    Severlek Emergency Panic Button C/O Contacts
    Kingsway Emergency Panic Button

    Key Operated Isolation Switch
