    Solenoid Valves for Water Oil & Diesel

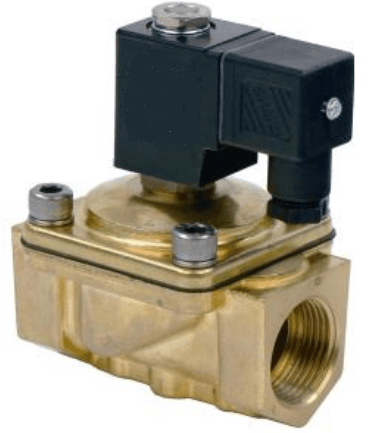

    General purpose solenoid valve is manufactured to a high standard. The solenoid valves are pilot operated with a hung diaphragm which enables zero bar operating pressure and is supplied with NBR seals and gaskets as standard.  This two way valve is normally closed and energised to open. Solenoid Valves are suitable for Water, Oil & Diesel and are designed for low gravity fed (Tank) or pumped pressure systems. These 2/2 Normally closed valves provide instant remote controlled shut off of the pipe line. Wiring is made simple through a removable IP65 DIN43650 din plug.

    • 17D11Z1A1-1A11, 17E11Z1A1-1A11, 17F11Z1A1-1A11, 17G21Z2A1-1A11, 17H21Z2A1-1A11,17J21Z2A1-1A11,17D11Z1C1-1A11, 17E11Z1C1-1A11, 17F11Z1C1-1A11, 17G21Z2C1-1A11, 17H21Z2C1-1A11,17J21Z2C1-1A11, ACD4, ACD6, ACD7, ACD8. ASCO 238 SCG238A044, SCG238A046, SCG238A047, SCG238A048, SCG238A049 SCG238A05 sce210b156, sce210b059, sce222b156, sce215b070, sce215b070vm, sce215b070vh, sce215c073, sce215c073vm, sce215c073vh, 8210B056, 8210G056, sce210b155, sce210b058, sce222b155, sce215b060, sce215b060vm, sce215b060vh, sce215c063, sce215c063vm, sce215c063vh,  8210B055, 8210G055, sce215b080, sce215b080vm, sce215b080vh, sce215c083, sce215c083vm, sce215c083vh

    0

    17D11Z1A1-1A11

    Solenoid Valves for Water Oil & Diesel Landon Kingsway High Level Float Switch 40901211

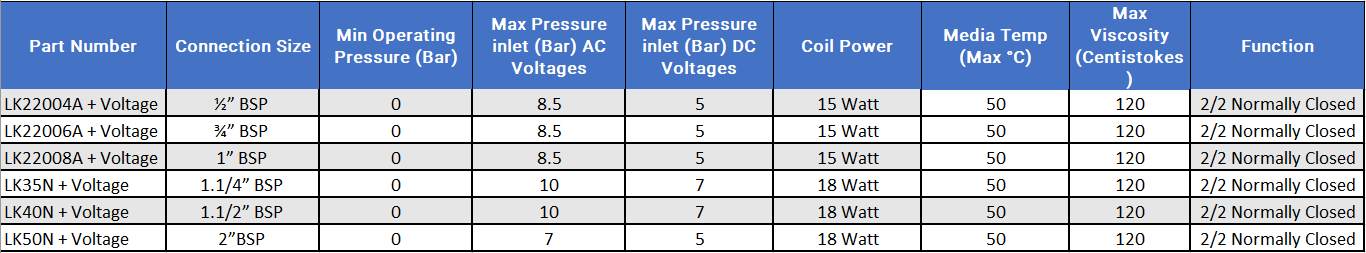

    Specification
