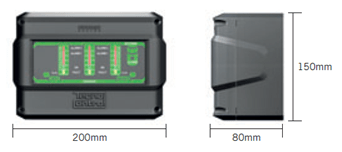

Introducing the SE194K Control Units, meticulously crafted for comprehensive gas monitoring across three remote sensors. These central panels boast an array of indicators, with three LED bars vividly displaying gas concentrations. The innovative design showcases a green LED for fresh air, dual red LEDs signalling pollution, and a distinct configuration for alarm relay activation. An additional yellow LED ensures anomaly detection, activating the fault relay for immediate response. Each sensor is equipped with its LED bar, providing clear and individualised feedback. With three relay outputs for alarms and faults, featuring memory pre-configuration, and two AUX inputs catering to solenoid valves with CPI control position and Emergency Push Buttons, this unit prioritises safety.
| Code | Gas Detected | Installation | Sensor type | Measuring Range | Alarm Intervention | Power Supply |
| SE194K | Methane / LPG | Wall | SE192KM SE192KG SE193KM SE193KG | 0÷20% LEL | 10% LEL 20% LEL | 110 / 230Vac 50/60Hz 12Vdc (-15/+10%) |
