    Emergency Panic Button

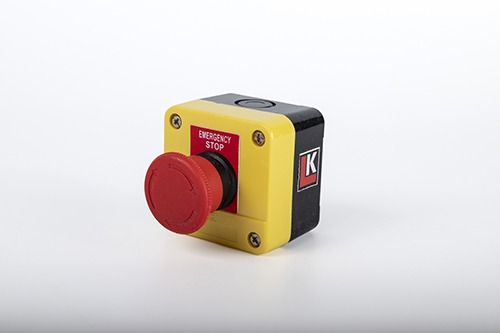

    The emergency panic button has a variety of uses where it is required to have a latching push button switch to sound an alarm or isolate equipment. The switch has a normally closed contact which becomes open circuit on the switch being pressed and stays open until the button is reset.

    Emergency Panic Button Landon Kingsway Lubricated Plug Valve

    Technical Specifications

    • Enclosure : ABS plastic with red button
    • Fixing centre : 54 … Ø4.3mm
    • Protection rating : IP65
    • Switch rating : 10A … 250Va
    • Wire size : 2 x 2.5mm²
    • Conduit connection : 20mm
    • Weight : 0.1kg
