Vegaplus Radar for Continuous Level Reading – 30 metres

    Vegaplus Radar for Continuous Level Reading – 30 Metres

    The Vegaplus radar for continuous level reading is a high accuracy, non-contact, cost effective solution for tank contents reading. With a 4 … 20 mA/HART output signal, this unit is ideal for communicating with BMS systems or stand alone controllers.

    Benefits

    • Completely non-contact solution with no contamination of product
    • Continuous measurement solution
    • No moving parts so reduced wear and tear over time
    • Unaffected by pressure and temperature changes
    • Simple install due to compact design
    • Tank questionnaire not required
    • Zero Calibration, maintenance free, therefore lower cost of ownership
    • +/- 2mm accuracy
    • Will measure level reliably regardless of product in tank
    • Easy diagnostic checking via inbuilt Bluetooth communications

    Technical Specification

    Measuring Range up to : 30 m (98.43ft)
    Output signal : 4 … 20 mA/HART
    Mounting Connection : G1″ or NPT 1″
    Process Pressure : -1 … +3 bar (-100 … +300 kpa)
    (14.5 … +43.51 psig)
    Ambient Temperature : -40 … +80°C (-40 … +176°F)
    Operating Voltage : 12 … 35V DC
    Protection : IP66/68

    Vegaplus Radar for Continuous Level Reading - 30 metres Landon Kingsway Vegaplus Radar for Continuous Level Reading
    Vegaplus Radar for Continuous Level Reading - 30 metres Landon Kingsway Vegaplus Radar for Continuous Level Reading

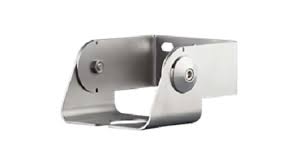

    Mounting bracket
